ETHERNET CONTROL SYSTEMS
Device Controllers >
Telephone Controller
Correctional control systems in a box
ECON Device Controllers are purpose built for correctional control applications. Each controller is a self contained unit that includes its own power supply, logic processor, solid state memory, Ethernet Interface, low level I/O, power switching relays and field wire interface. Each ECON controller operates autonomously from the other controllers, thereby limiting the effects of damage to a single controller. All inputs are optically isolated to prevent damage from lightning or surges. Controllers are available in a rack mountable or panel mountable form factor. All ECON controllers work seamlessly with our CAM software, and our Open Protocol Integration (OPI) platform allows other PLC software to control and monitor ECON controllers.

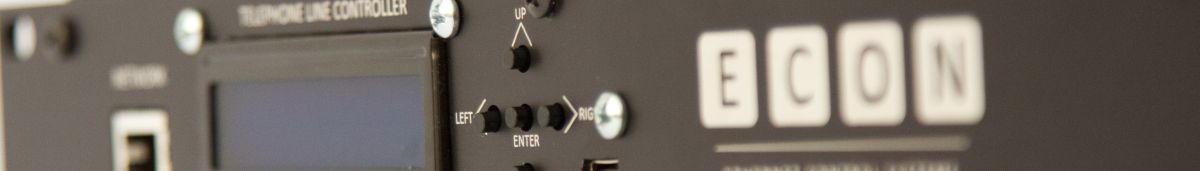

Telephone Line Controller
The ECON Telephone Line Controller (TLC) is the perfect way to control inmate telephones. The TLC provides twelve Double Pole Double Single Throw (DPST) low-current audio grade relays that can be used to make / break phone lines to inmate payphones. The TLC is available in a 1 RU format that fits easily in open frame or enclosed data racks as well as a panel mount version for use in wall mount enclosures. Both formats allow installers to easily access the wiring connections on both the front and rear panels. The rack mount format also affords installers the use of standard 19? rack wire management hardware.
The TLC provides 12 DPST relays that for a total of 24 contacts. Each output connector has two Commons and two N.O. terminals. Like all ECON I/O, the TLC allows users to associate any input in the system with any output.
Datasheet
Installation Guide
Product Drawing
